ioc-collection

A collection of .ioc-files for working with different STM32 μCs and TACOS. The .ioc-files are already correctly configured for TACOS-based projects.

Using An .ioc

You can create a project from an existing .ioc-file (e.g. one of the .ioc's provided in this repository) by pressing file > new > STM32 Project from an Existing STM32CubeMX Configuration File and choosing the desired file under STM32CubeMX .ioc file > Browse.

Creating An .ioc

If your microcontroller is not supported yet, you can create a .ioc-file by creating a new project with the desired microcontroller and selecting the following settings in the project's .ioc:

Project Manager > Project Step 1

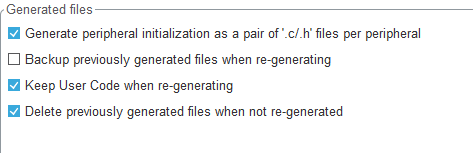

Project Manager > Code Generator Step 2

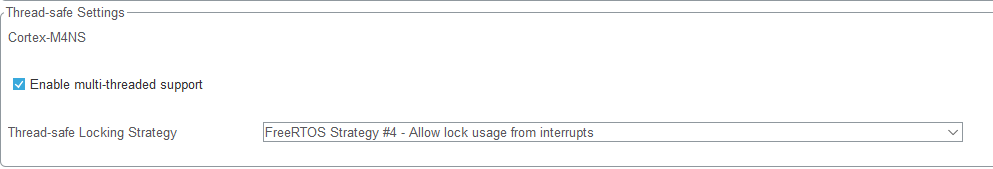

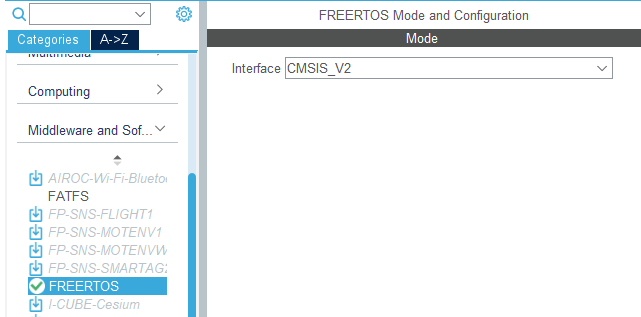

Pinout & Configuration > Middleware and Software Packs Step 3

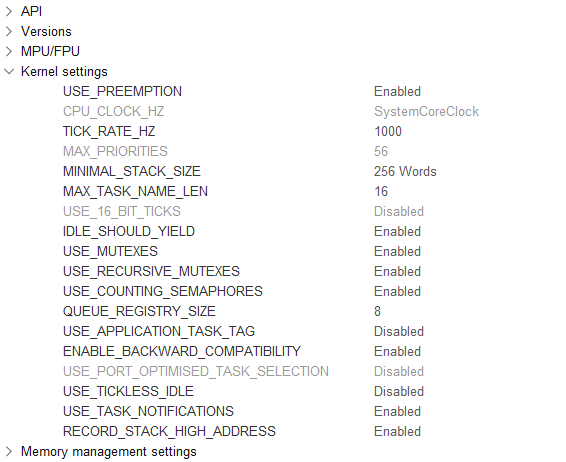

Pinout & Configuration > Middleware and Software Packs > FREERTOS > Config Parameters Step 4 Step 5

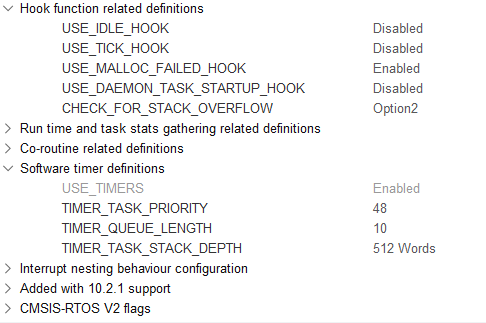

Pinout & Configuration > Middleware and Software Packs > FREERTOS > Advanced Settings

Step 5
